Model

P-4000 Digital Polarimeter

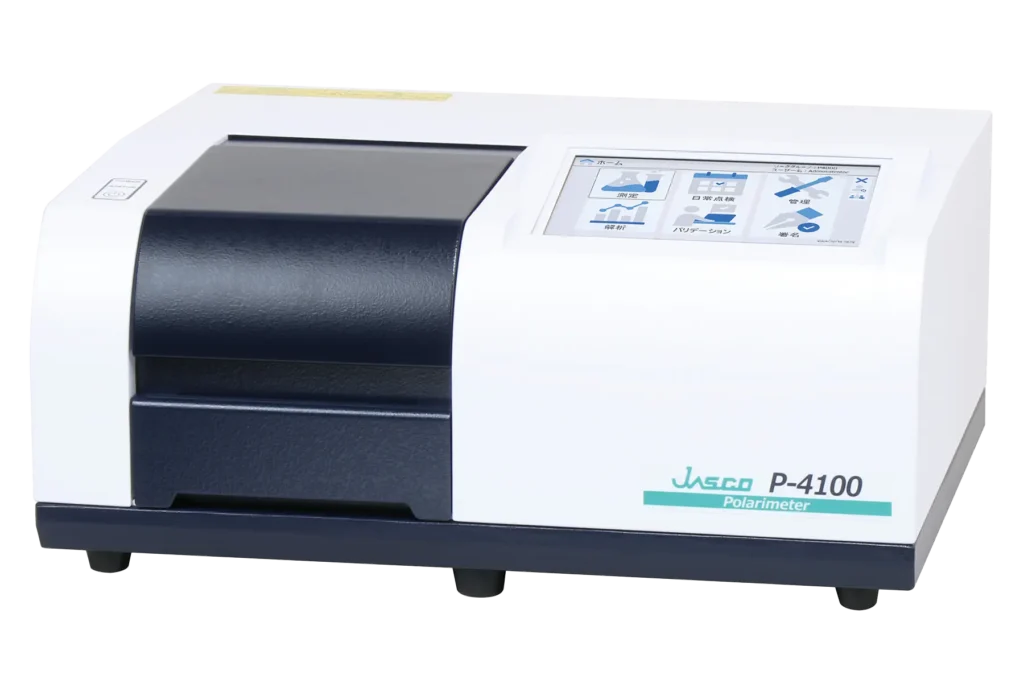

P-4100 Model

  • Smallest footprint in the P-4000 lineup
  • Measurement by using long-life time LED
  • Correction support capable using light source with specific emission line
  • Reliable optical rotation accuracy for routine analysis (±10 mdeg)
  • PC-free operations thanks to embedded processor and 7 inches Touch Pad

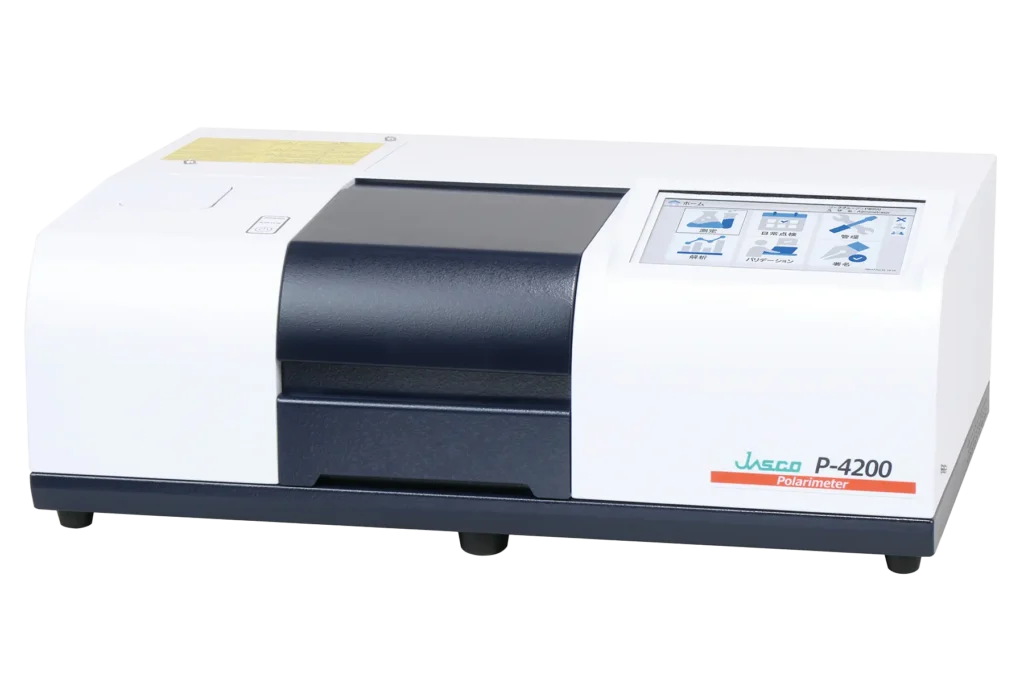

P-4200 Model

  • Measurement by using D-line of sodium lamp
  • Sample compartment exhaust function
  • High-throughput measurement capability
  • Excellent optical rotation accuracy suitable to R&D (±2 mdeg)
  • PC-free operations thanks to embedded processor and 7 inches Touch Pad

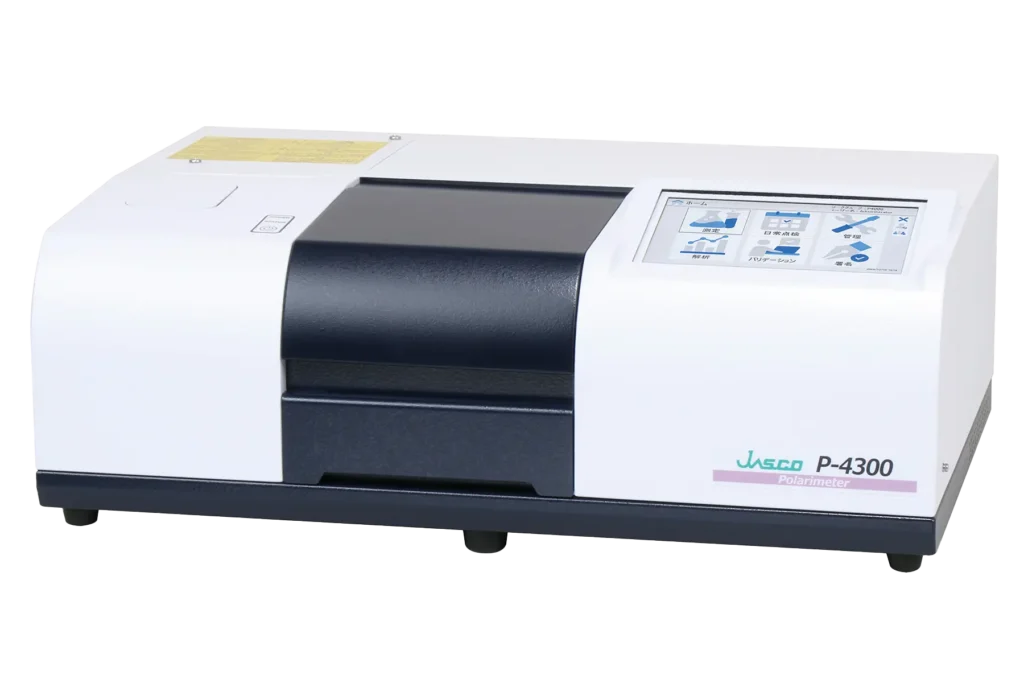

P-4300 Model

  • Versatile wavelength selection with sodium and mercury lamps
  • Automatic filter changer for selecting proper measurement wavelength
  • Sample compartment exhaust function
  • High-throughput measurement capability
  • Excellent optical rotation accuracy suitable to R&D (±2 mdeg)
  • PC-free operations thanks to embedded processor and 7 inches Touch Pad

ALCOA+ Data Integrity Spectra Manager 2.5 CFR

Regulatory compliance for 21 CFR part 11 is available as an option with PC based Spectra Manager CFR™.

JASCO Spectra Manager 2.5 CFR is designed and developed under ALCOA+ and is a total solution platform to create accurate and complete data.

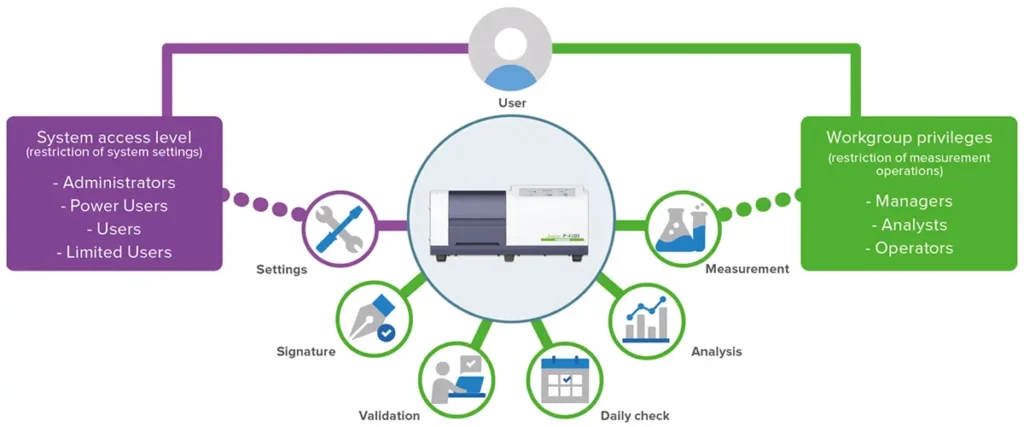

User Management

Based on the dual security structure ([Access Level] and [Work Group]), it is possible to manage different authorization process in flexible and independent as total analysis systems, instrumentations and analytical applications.

Enduring Electronic Record

Based on prohibiting function to delete electronic record and to overwrite save, and also functions for automatic backup and restore data, electronic records can be saved properly and can be searched accurately during the data lifecycle.

Audit Trail

It is categorized as 3 different records (system log, application log and data log), and it is recorded. Each log can be filtered and displayed under recorded date, user name etc, and it can be exported to audit trail review as text file.

Computerized System Validation

Spectra Manager 2.5 CFR is developed and manufactured properly under quality control system adapted ISO 9001, and adapted CSV standard.

User Account Security

Based on functions to prevent duplicate account or to protect password, and to prevent unauthorized access, administrative authorizations as system access and electric signature etc., can be managed strictly.
